Congress enacted the Consumer Product Safety Improvement Act of 2008 and we must now note that these ARE NOT TOYS, AND ARE NOT INTENDED FOR USE BY CHILDREN UNDER AGE OF 14. These products are Model Railroad Equipment and Accessories intended for use by adults.

Digitrax Stationary Decoders

• The Digitrax complete train control system brings fun and realism to model railroading. The Digitrax LocoNet system incorporates many technologies, including DCC, to give you a system that seamlessly handles all aspects of layout control and model train operation. With Digitrax you can run many trains at the same time just like on the real railroad. You can operate lights and sounds on the trains. You can set up detection and signaling so you'll know where the trains are at all times. Reversing loops can work automatically. Short circuit and power management gives you smooth operation without a lot of interruptions.

• "We are committed to customer service. Our customers are the reason we are in business. If you have any questions or comments about our system please let us know so we can resolve any issues you have and so we can make better products for you in the future."

DS44 Basic Quad Stationary Decoder

#DIGI-DS44 Basic Quad

• Basic Quad Stationary Decoder for Slow Motion Turnout Machines, add cost effective DCC control to your slow motion turnouts
• Click here to view PDF instructions

$~~43.00~~ retail ea. • $34.40

DS44 Features:

• No frills stationary decoder
• Simple installation and set up
• Control 4 slow motion turnout machines from your DCC throttle
• Quick set up for sequential addresses (like the DS54)
• Independent address set up also available (you can
choose any stationary address for each turnout machine)
• Note: DS44 will not work with solenoid type turnout machines

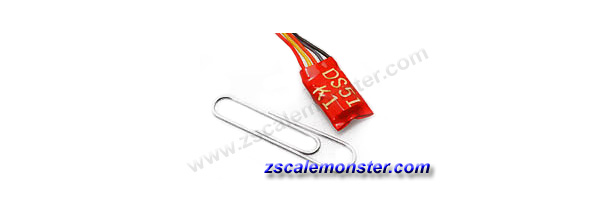

DS51K1 Stationary Decoder For Single Kato Unitrack Turnouts

#DIGI-DS51K1 Kato Turnouts

• DS51K1 Stationary Decoder for Single Kato Unitrack Turnouts
• Click here to view PDF instructions

$~~19.00~~ retail ea. • $15.20

DS51K1 Features:

• Stationary Decoder for Kato Unitrack Turnouts or other similar device
• Cost effective control of a Kato Unitrack turnout or other similar device
• Rated at ½ amp. Great for HO & N Scale
• Easy to install & Easy to use
• Small size .319” x .509” x .152” (8.11mm x 12.94mm x 3.88mm)
• Click here to view the Digitrax page for more info

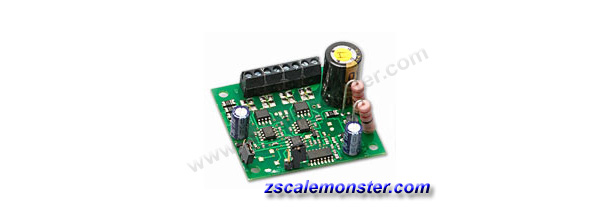

DS52 Dual Stationary Decoder for Snap Switches or Slow Motion Machines

#DIGI-DS52 Bi-polar, Snap, Slow

• Dual Stationary Decoder for Bi-polar, Snap Switches or Slow Motion Machines
• Click here to view PDF instructions

$~~28.00~~ retail ea. • $22.40

DS52 Features:

• DCC compatible; simple hook up and set up
• Turnout addresses can be set individually or in groups of 2
• Screw terminals make installation easy!
• Addresses can be independent or sequential
• All Scales up to 22V track power
• Click here to view the Digitrax page for more info

Option 1
• Control 2 Solenoid type turnout machines such as three wire Peco or Atlas Snap Switches or two wire bi-polar type turnout machines such as Kato Unitrack, AristoCraft, or LGB turnouts with powerful capacitive discharge capability.

Option 2
• Control 2 individual turnout machines. 2 Slow motion turnout machines, such as Tortoise™ by Circuitron or Switchmaster™.

Watch the Video

DS74 Quad Stationary Decoder (Replaces DS64)

#DIGI-DS74 Quad DCC Decoder

• The DS74 allows you to install and
operate your turnouts directly through any
DCC system that has turnout control.
• Click here to view Digitrax spec

$~~79.00~~ retail ea. • $63.20

Replaces DS64

DS64 Features:

• 8 onboard Routes, with EZ-Route setup.
• Routes directly editable using latest DT602 IPL.
• 8 input lines for Switch and Detection inputs.
• Field firmware update via IPL over LocoNet.
• DC 2mm jack for reliable power input.
• Optional DCC track inputs for limited feature capabilities.
• Click here to view the Digitrax page for more info

DS74:

• Quad switch decoder for Solenoid or Slow-motion turnouts.
• Configurable for on/off control of 8 layout lights.
• Size 99mm x 67mm x 27mm

• The DS74 works with a wide selection of hardware. From solenoid turnout machines to slow motion motors, the DS64 hasn’t met a turnout it doesn’t like.

Watch the Video

DS78V Eight Servo LocoNet Stationary & Accessory decoder for turnout control

#DIGI-DS78V Servo Decoder

• Eight 9G servo decoder for 2-position
Slow-motion turnouts.
• Click here to view Digitrax spec

$~~85.00~~ retail ea. • $68.00

New!

• 16 System Routes, with EZ-Route setup.
• Routes remotely editable using DT602 with latest software.
• 16 input lines for Switch and Detection inputs.
• Optional 16 direct hardware Route triggers.
• Software field update/IPL over LocoNet.
• DC 2mm 12V jack for reliable power input.
• Click here to view the Digitrax page for more info

• Eight 9G servo decoder for 2-position Slow-motion turnouts.
• Configurable to control eight 3-position semaphores.
• Works with compatible LocoNet Systems.
• On-layout remote programmability via LocoNet.
• Size 99mm x 67mm x 27mm

• Supports two DSXC4 input connector boards and cables.
• Supports two BD4N’s for block detection reporting.
• Supports 8 DSXCP1 Fascia control and direction indicators.
• Supports DSXCP1 indicating ‘servo in motion’.
• Optional DCC track input for limited feature capabilities.

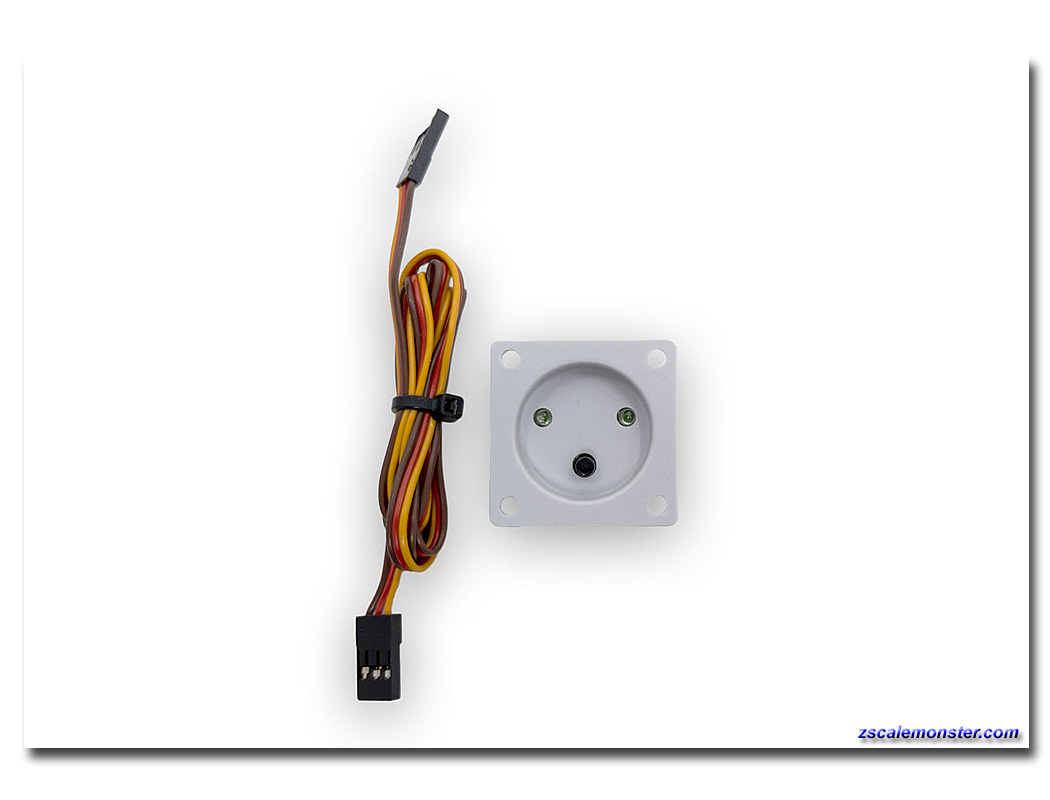

DSXCP1 Fascia mount Switch control device for the DS74

#DIGI-DSXCP1 Switch Control

• Fascia mount Switch control device.
• Two color leds display current Switch state.
• Click here to view Digitrax spec

$~~15.00~~ retail ea. • $12.00

New!

• Fascia mount Switch control device.
• Wire to DS74 input cable, or use DSXC4 for plug and play.
• Two color leds display current Switch state.
• Supplied with 3 wire control cable.
• Click here to view the Digitrax page for more info

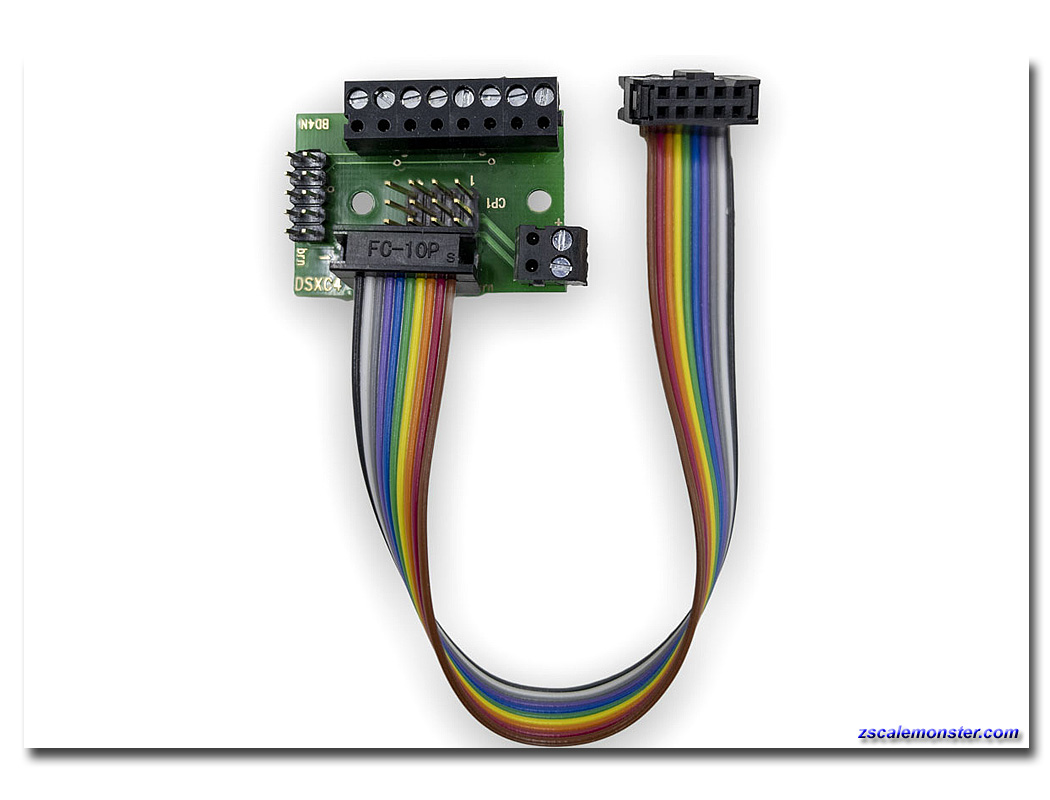

DSXC4 Input interconnect board for DS74

#DIGI-DSXC4 Interconnect Board

• Input interconnect board for DS74.
• Provides plug and play for DS74 inputs.
• Click here to view Digitrax spec

$~~16.00~~ retail ea. • $12.80

New!

• Input interconnect board for DS74.
• Provides plug and play connectivity for DS74 inputs.
• Supplied with ribbon cable to plug into DS74 10 pin Input header.
• Allows plug-in of up to 4 DSXCP1 fascia controls.
• Direct ribbon cable plug-in header to BD4N detectors.
• 8 pin screw terminal plug for optional wire access to 8 input lines.
• Click here to view the Digitrax page for more info

DSXSV9 9G Turnout or motion control servo with mount bracket and installation hardware

#DIGI-DSXSV9 Servo

• 9G mini servo system for turnout or motion control.
• Under layout mounting bracket included.
• Click here to view Digitrax spec

$~~17.00~~ retail ea. • $13.60

New!

• 9G mini servo system for turnout or motion control.
• Under layout mounting bracket included.
• Compact install for tight N scale switches, and decks.
• Includes pre-formed drive wires.
• Supplied with mount hardware.
• Click here to view the Digitrax page for more info

DS64 Quad Stationary Decoder

#DIGI-DS64 Quad DCC Decoder

• The DS64 allows you to install and
operate your turnouts directly through any
DCC system that has turnout control.
• Click here to view PDF instructions

$~~59.99~~ retail ea.

DS64 Features: Discontinued

• Operates four turnouts
• Switch inputs for turnout control
• LocoNet Control and feedback
• Integral capacitor discharge
• Operates from track power or a separate booster
• Buffered switch inputs
• Click here to view the Digitrax page for more info

DS64:

• This affordable, easy to install decoder will add another dimension
to your railroad operations.
• Size 4.72" x 2.65" x 1.4" (120mm x 87.5mm x 35mm)

• The DS64 works with a wide selection of hardware. From solenoid turnout machines to slow motion motors, the DS64 hasn’t met a turnout it doesn’t like.

Watch the Video
