Congress enacted the Consumer Product Safety Improvement Act of 2008 and we must now note that these ARE NOT TOYS, AND ARE NOT INTENDED FOR USE BY CHILDREN UNDER AGE OF 14. These products are Model Railroad Equipment and Accessories intended for use by adults.

Coupler Box Wrap • Zscale Monster Trains

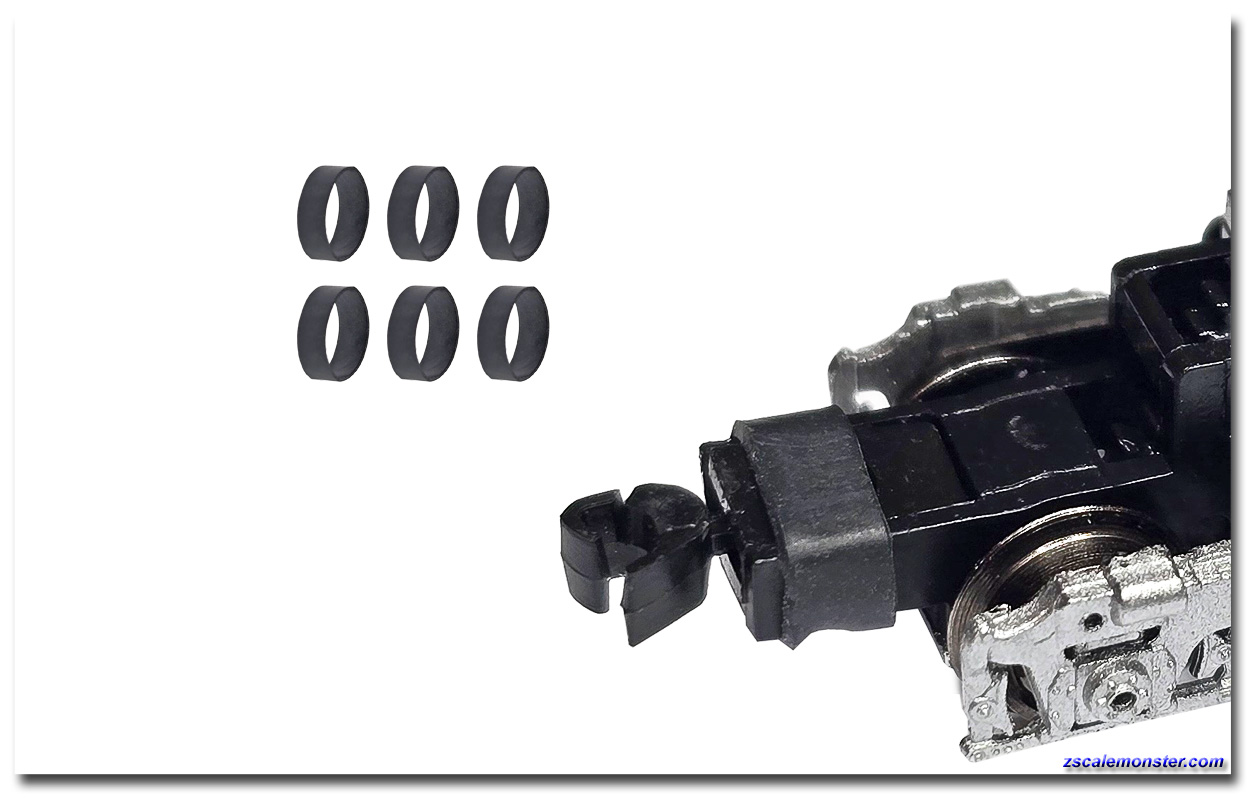

#ZSM-300506 Coupler Box Wrap

• Includes: 6 x Pieces

$~~3.99~~ retail ea. • $3.19

6-Pack

#ZSM-300506

Product Use:

• Use to secure the coupler box cover, to the truck-
mounted coupler box, when tabs on the cover will not properly
latch into coupler box.
• Works with most brands of truck mounted couplers:
Atlas, AZL, FT, IM...

Product Details:
• Length: 1/8"
• Diameter: 3/16"
• Material: Heat Shrink Tubing
• Quantity: 6 Pieces

Figure 1

Figure 2

Figure 3

Figure 4

Directions:

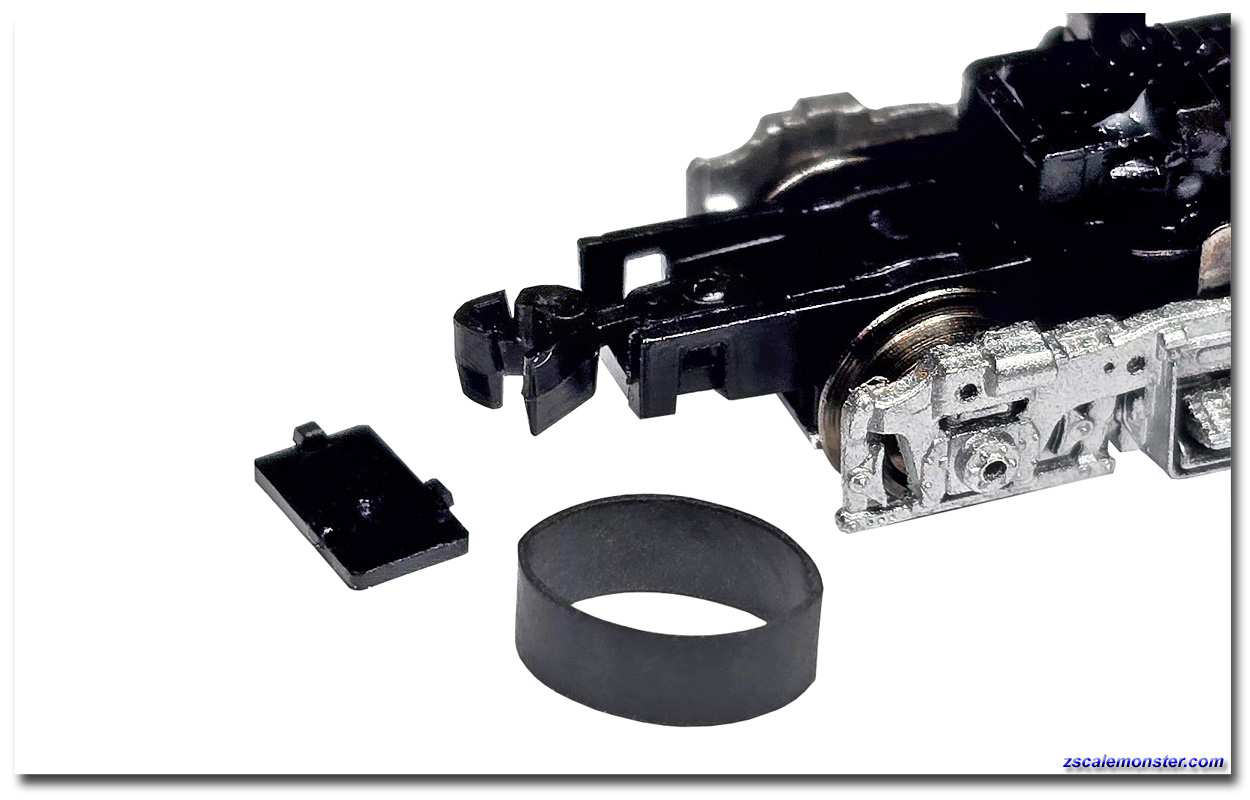

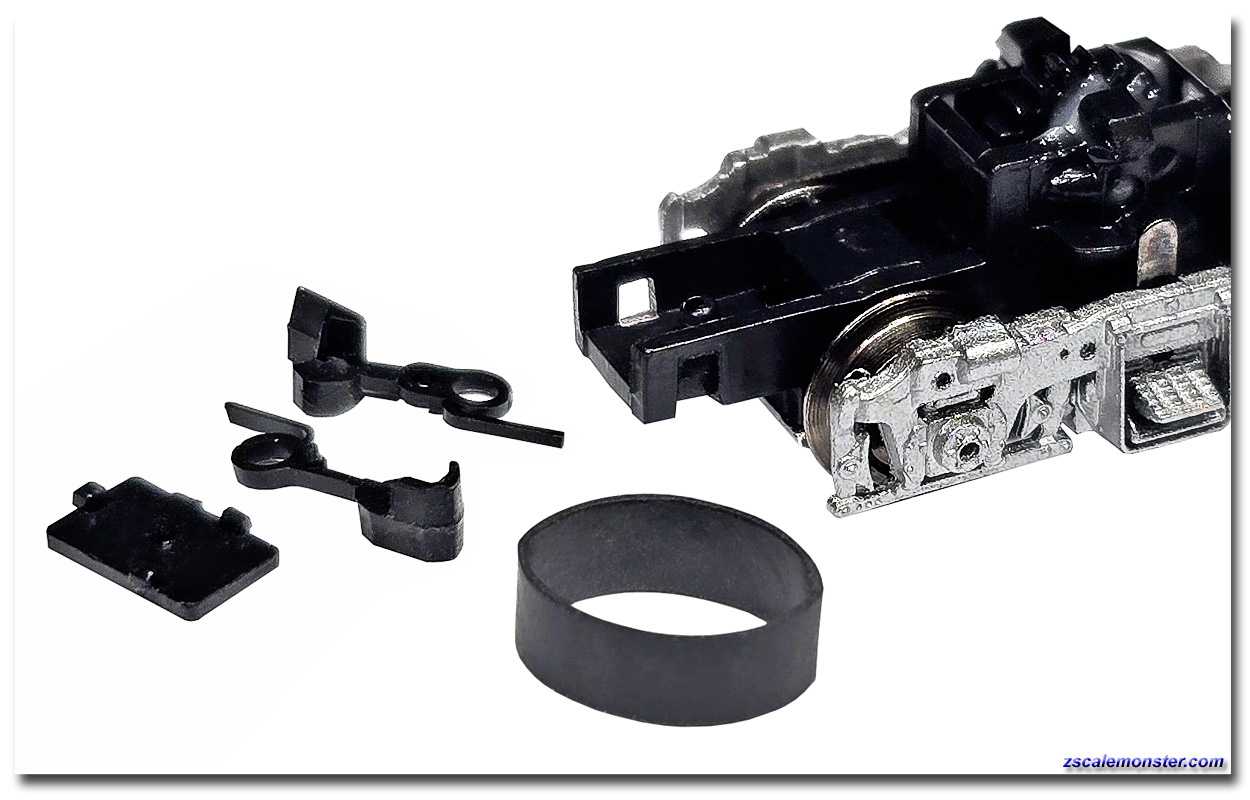

• Get all the parts ready to assemble (Fig. 1).
• Install the coupler into the coupler box (Fig. 2).

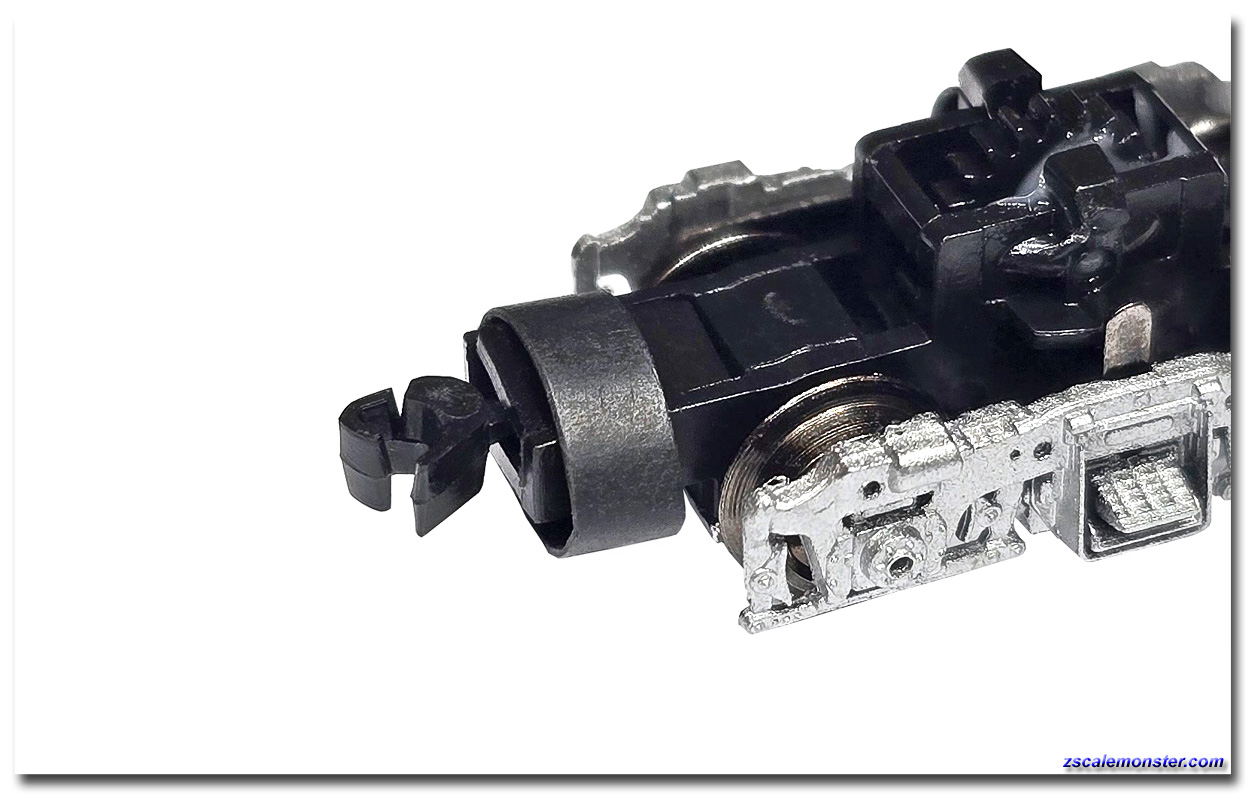

• Place coupler box cover onto coupler box (Fig 3).
• With coupler and cover installed on coupler box,
place one piece of supplied heat shrink tubing
around the assembled coupler box/cover (Fig 3).

• Using a heat gun, on low, shrink the tubing
evenly around the coupler box assembly,

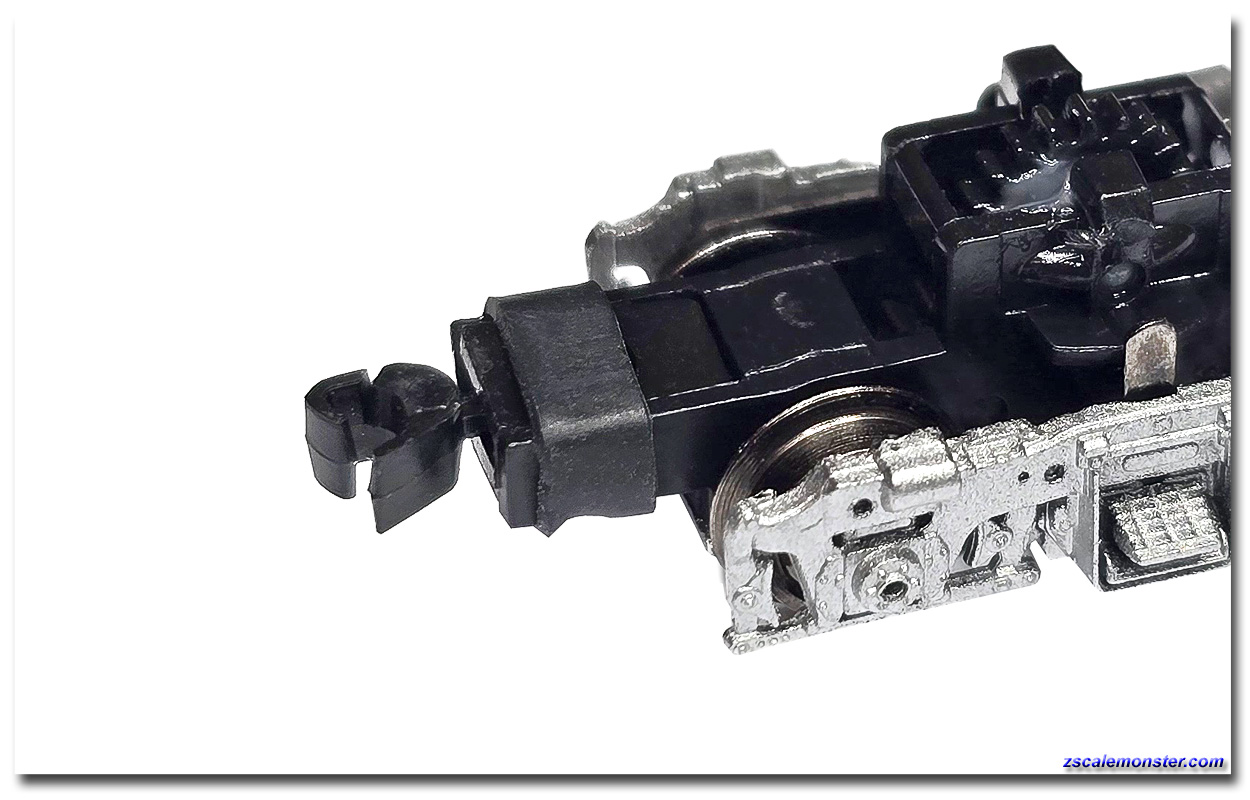

until it looks as shown (Fig 4).
• Make sure it shrinks evenly on all sides.
• Be careful not to over-heat the coupler or truck
while applying heat to the heat shrink tubing.
