#ZDL-10300 DCC Board • AZL Universal
|
|
• Fits AZL Locomotives: AZL Universal
|
$124.82 retail ea. • $99.86
 2026
Version 2.0
|
|
|
|
Designed for:
• Most AZL (See List) • Some Marklin (See List)
Package Contents:
• 1 x AZL Universal Digital Board
• 1 x User Manual PDF Instructions
• 1 x Set of Plastic Insulation Stickers
|
|
|
|
ATTENTION: Always use the provided Insulating Stickers!

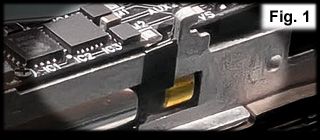

You must always install the provided insulating stickers, Figure 1, when installing your decoder!
These Insulating Stickers isolate the motor terminals, from the chassis, preventing an accidental
short circuit between the motor terminals and the chassis. Risk of short circuit is quite high if the
Insulating Stickers are not installed. Double-check, using the continuity check on your multimeter,
for any short circuits between motor terminals and chassis. A short circuit between the chassis and
the motor tabs will destroy the decoder! You must apply these stickers to your AZL chassis!
|
 |
|
|
|
Features:
• Decoders are based on Doehler & Haass DH05C multiprotocol digital decoder.
• For detailed information about programming in all available modes (DCC, MM, SelecTRIX 1 and 2),
please refer to the complete programming manual available on Doehler & Haass official website:
• https://doehler-haass.de
• 470 μF buffer for even more reliable and stable operation.
• Directionally controlled head lights are pre-installed at the both ends of the circuit board.
• The brightness of headlights can be adjusted independently.
|
Technical Data:
• Operating Mode: DC/DCC/MM/SelecTRIX 1 & 2
• Max Voltage: 12 Volts - Analog Mode
• Max Voltage: 14 Volts - Digital Mode
• Power Buffer: 470 μF Integrated highly efficient
energy storage module with thermal
and overvoltage protection
• LEDs: 3 x Warm White LEDs (2 front, 1 rear)
|
|
|
Installing Decoder in a chassis produced without PCB mounting screws:

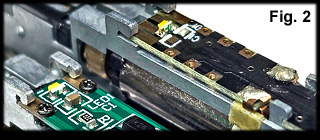

As you can see, Figure 2, some chassis use friction to transfer electricity from the chassis to PCB.
If your installation uses friction, and you have a poor electrical connection between chassis and pads,
you will have to add a thin layer of solder, to the PCB track pads, to make them fit more snug.
Use good soldering flux for this, preferably one that is suitable for SMD rework (usually comes in
syringes). Please don't add too much solder, only a little bit!
|
 |
|
|
|
 |
 |
 |
 |
|
Functions:
• F0 - Directionally controlled head lights / tail lights
• F1 - Dimming function (headlights reduced 50%)
• F2 - Shunting mode (speed reduced 50%)
• F3 - AUX 1 output
• F4 - AUX 2 output
• Default address: 3 (DCC), 01 (SelecTRIX)
|
|
|
AZL Locomotives:
• AZL-6200 Series (GP7)
• AZL-61000 Series (SD70, SD70M, SD75M, SD75i)
• AZL-62000 Series (GP7/GP9)
• AZL-62100 Series (GP30 1&2 run)
• AZL-62400 Series (ES44AC)
• AZL-62500 Series (GP38-2)
• AZL-62600 Series (E8A, E8B, E9A, E9B)
• AZL-62900 Series (F3A, F3B)
|
(AZL Continued)
• AZL-63000 Series (F7A, F7B)
• AZL-63100 Series (SD70ACe)
• AZL-63200 Series (SD45)
• AZL-63500 Series (P42)
• AZL-64600 Series (E7A, E7B)
• AZL-65100 Series (C44-9W)
• AZL-65200 Series (AC4400CW)
• AZL-65300 Series (FP7)
|
Marklin / AZL Locomotives:
• 88615 (GP38-2)
• 88616 (GP38-2)
• 88625 (E8A)
• 88626, 88627 (E8A, E8B)
• 88628 (E9A)
• 88629 (E8A)
|
|
|
ATTENTION:
This product is intended only for experienced users! Please perform all operations with all precautions that apply to work with ESD sensitive devices. The manufacturer is not responsible for any damage to the train model and/or digital decoder caused by improper installation or exceeding the maximum allowed operating voltage.
|
|
|
