Congress enacted the Consumer Product Safety Improvement Act of 2008 and we must now note that these ARE NOT TOYS, AND ARE NOT INTENDED FOR USE BY CHILDREN UNDER AGE OF 14. These products are Model Railroad Equipment and Accessories intended for use by adults.
Searails
Features:
• 6.5mm or 9mm
• Powered Chassis
• 6 Volt Motor
• Version v.2
Each PowerMAX! motor is rated for 6 volts DC or 12 volts DC for 2 units in tandem. Current limiting diodes are NOT required for the v.2 PowerMAX!
Nn3   •   6.5mm   •   EMD Model 40 Switcher
#SER-300   EMD Model 40 Switcher
• Released November 2019
• 6.5mm Nn3 (Z scale track)
  $198.67 retail ea.
Nn3

Black
Nn3

Raw Brass
Details:
This is an Nn3 scale item that runs on Z scale track, 6.5mm track. Nn3 trains use 6.5mm track so some Z scale model railroaders do use Nn3 on their Z scale layout just for a little variety.
Includes:
• 1 Each EMD Model 40 Switcher
• For use on Z scale track
Features:
• 6.5mm Nn3
• Powered
• Ready to Run
• Cast Brass Body
• Fully assembled
• Black or Raw Brass
• MTL #905 Couplers
• 6 Volt Motor
• Double Insulated Driving Wheels
• Improved CNC Driving Gears
• NMRA RP-25 Profile Wheels
• CNC Black Driving Wheels
• DCC Capable
• Version v.2

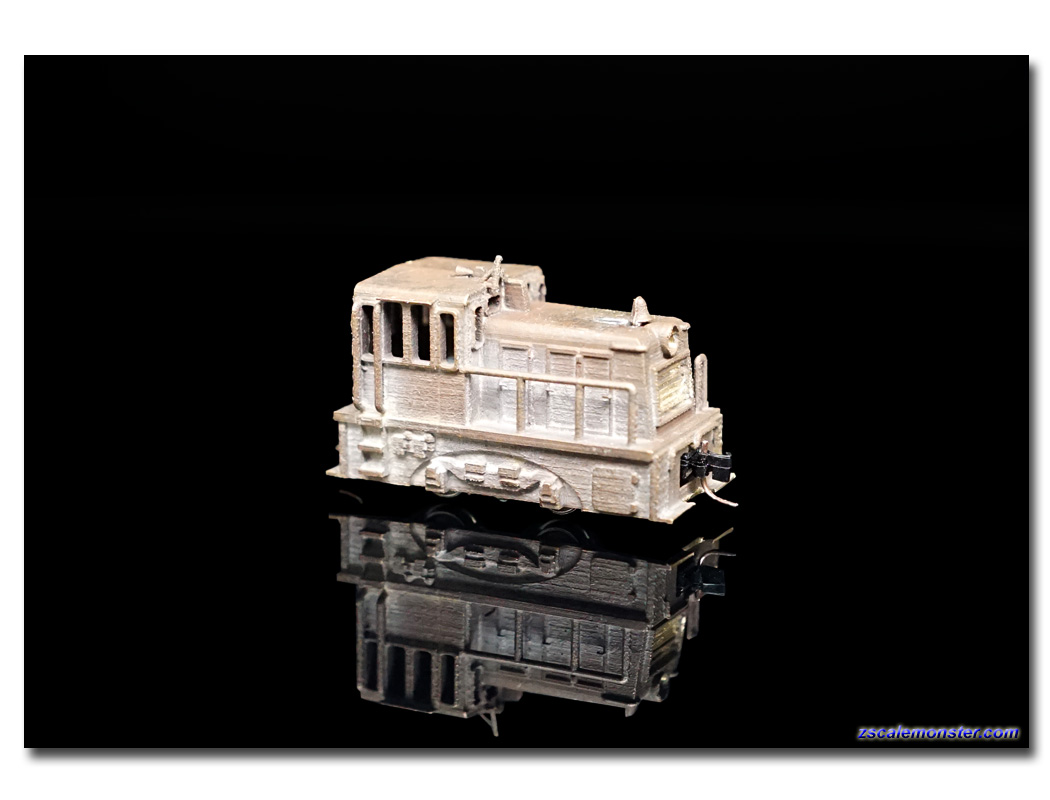

N Scale   •   9mm   •   General Electric 25-Ton Switcher
#SER-400   GE25T Switcher
• Released November 2019
• 9mm N scale
  $248.75 retail ea.
Very Limited
N Scale

Raw Brass
Details:
This is an N Scale item and it runs on standard N scale track, 9mm track.
Includes:
• 1 Each GE25T Switcher
• For use on N scale track
Features:
• 9mm N Scale
• Powered
• Ready to Run
• Cast Brass Body
• Fully assembled
• Raw Brass
• MTL #905 Couplers
• 6 Volt Motor
• Double Insulated Driving Wheels
• Improved CNC Driving Gears
• NMRA RP-25 Profile Wheels
• CNC Black Driving Wheels
• DCC Capable
• Version v.2

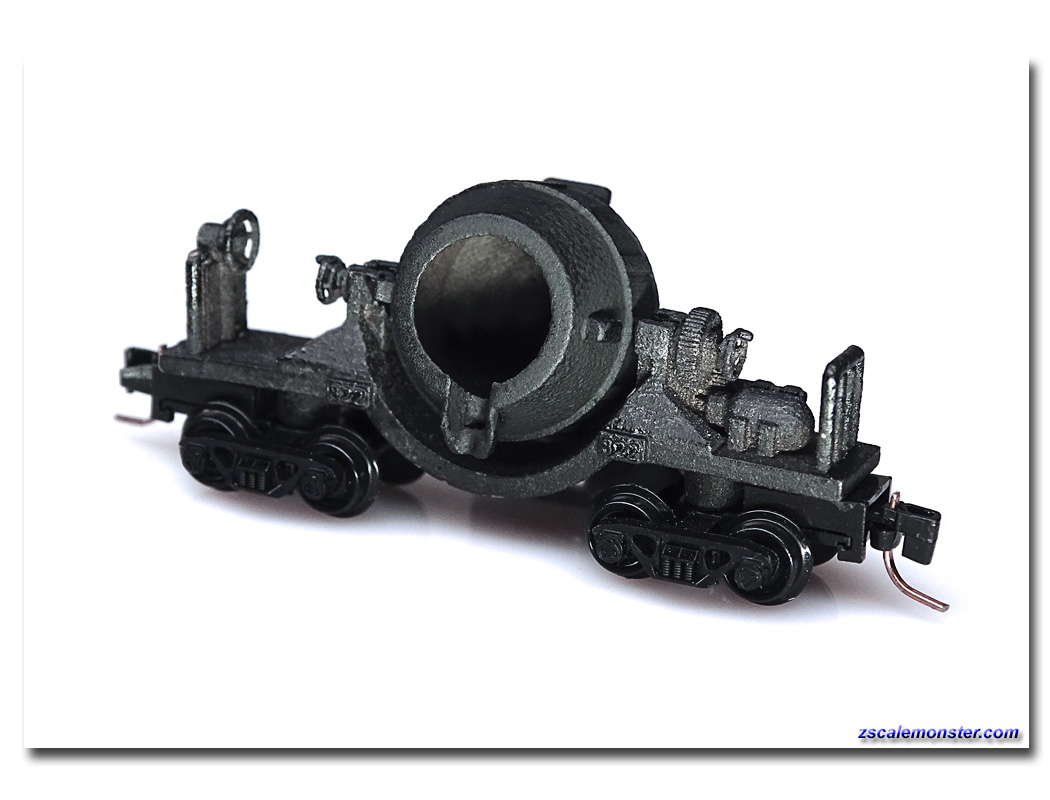

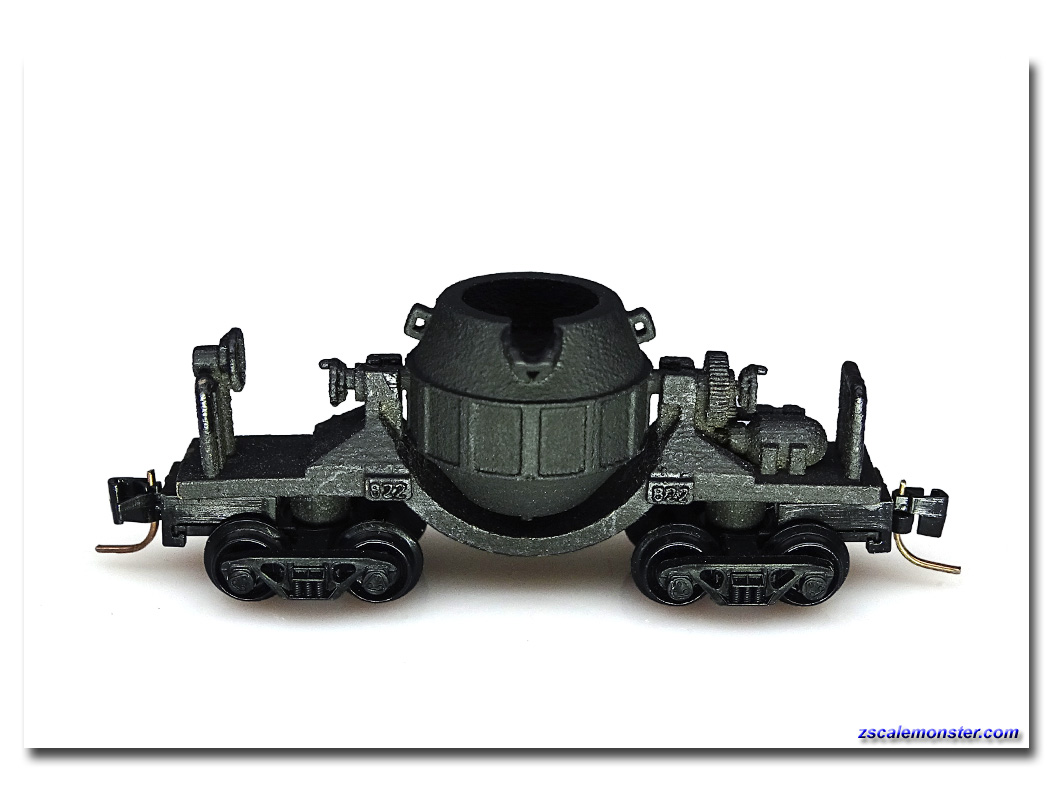

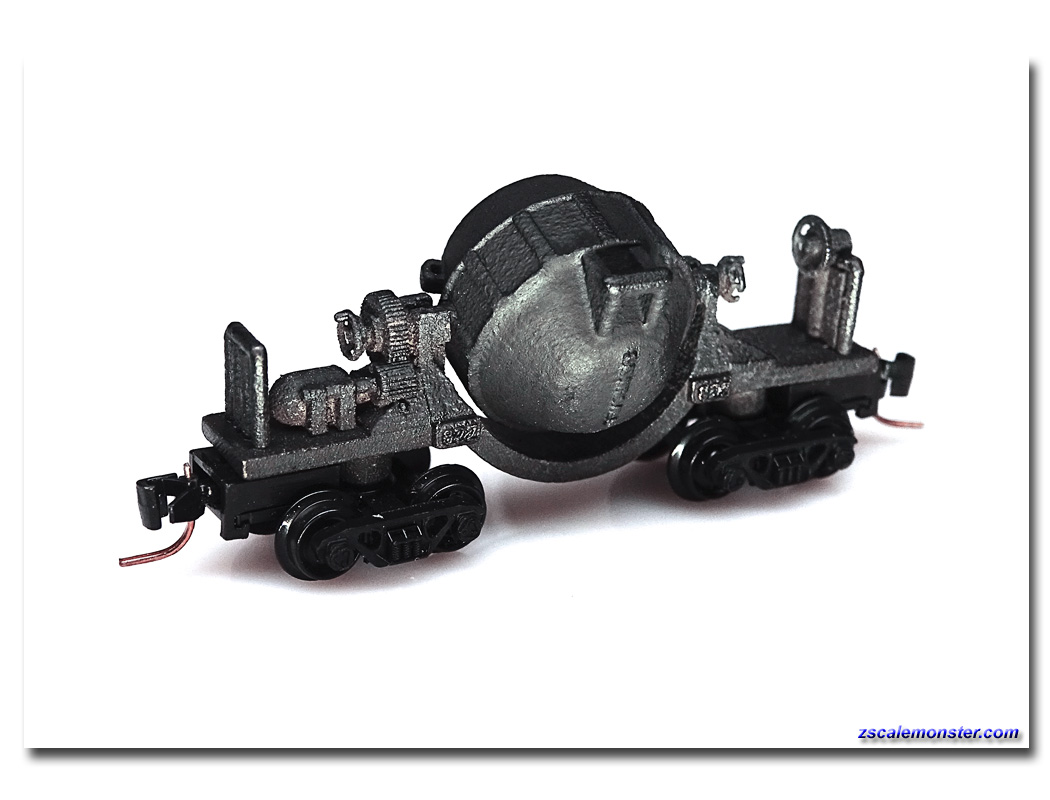

6.5mm   •   Tipper Cauldron Car
#SER-200-571   Tipper Cauldron Car
• Released January 2018
• 6.5mm Z Scale (Nn3)
  $158.31 retail ea.
Z Scale (Nn3)

Discontinued
Details:
Modeled on operating units of the Kennecott Ray Mines Division Smelter. This cauldron car has full static details cast into the body; the operator’s veranda, cauldron saddle, and detailed gears. The cauldron is detailed with rotating posts, left and right crane grips, bottom tipping grip, and spout. The tipping cauldron car can be used for steel, copper, coke, and other smelter car applications. Other cars used in the smelter include slag, ingot, and specific product designed cars.
Features:
• Cast Brass Body
• Fully assembled
• Painted Black
• Ready to Run
• MTL Couplers
• MTL Trucks
Includes:
• 1 Each Tipper Cauldron Car
• 1 Each Removeable Tipper Cauldron

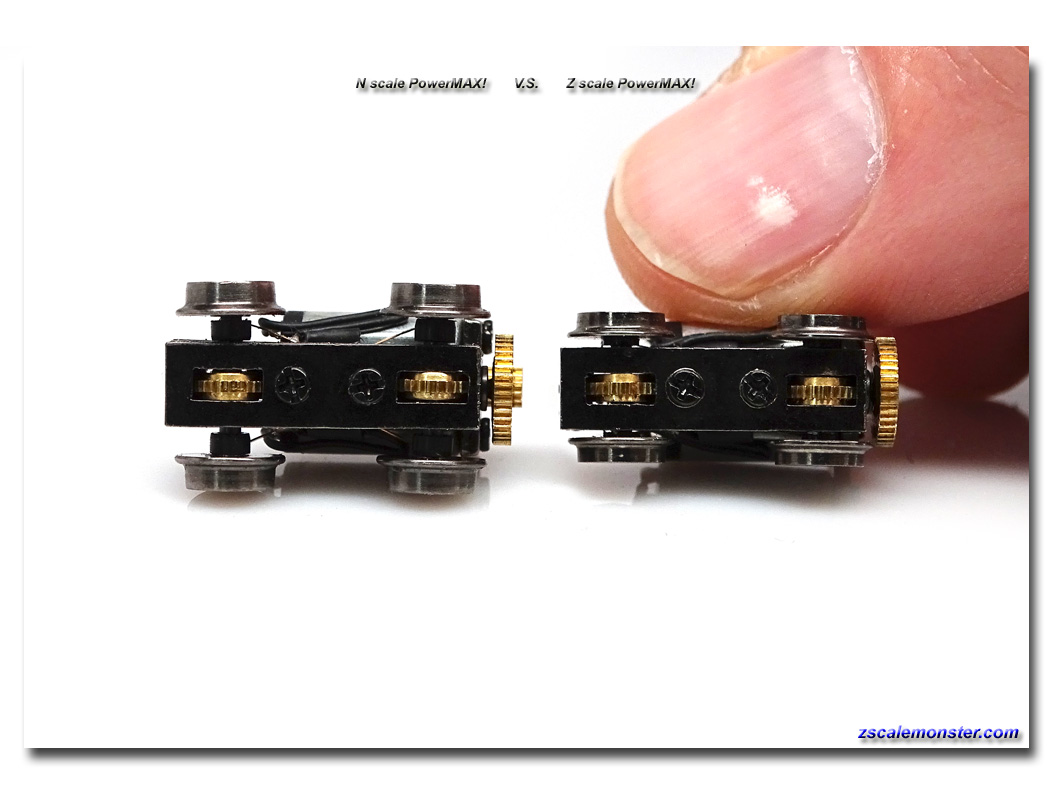

6.5mm   •   PowerMAX! v.2
#SER-150-6.5   6.5mm PowerMAX!
• 6 Volt Motor
• 6.5mm Z Scale (Nn3)
$129.99 retail ea.
Z Scale (Nn3)

Discontinued
Lubrication:
    • Oil is applied prior to shipping, your locomotive should not need lubrication when received
    • Lubricate every ten (10) hours of operation or when gears appear dry
    • Also lubricate if gear mesh sound noticeably increases during operation
    • The locomotive does NOT need to be disassembled to lubricate
    • Sparingly lubricate the layshaft gear and the two worm wheels (visible from bottom)
    • Use AeroCar ACT-2112 or ACT-3753                         • Do not over lubricate!
v.2 Features:
• 6.5mm Z Gauge
• 6 Volt Motor
• DCC Capable
• Version v.2
• Double Insulated Driving Wheels
• Improved CNC Driving Gears
• NMRA RP-25 Profile Wheels
• CNC Black Driving Wheels
Commonly used with:
    • Nn3 Class B, 26 Ton Shay Kit   #SCM-5002
    • Nn3 Class A, 16 Ton Shay Kit   #SCM-5008

PowerMax!
9mm   •   PowerMAX! v.2
#SER-150-9.0   9mm PowerMAX!
• 6 Volt Motor
• 9mm N Scale
$149.99 retail ea.
Z Scale (Nn3)

Discontinued
Lubrication:
    • Oil is applied prior to shipping, your locomotive should not need lubrication when received
    • Lubricate every ten (10) hours of operation or when gears appear dry
    • Also lubricate if gear mesh sound noticeably increases during operation
    • The locomotive does NOT need to be disassembled to lubricate
    • Sparingly lubricate the layshaft gear and the two worm wheels (visible from bottom)
    • Use AeroCar ACT-2112 or ACT-3753                         • Do not over lubricate!
v.2 Features:
• 9mm N Gauge
• 6 Volt Motor
• DCC Capable
• Version v.2
• Double Insulated Driving Wheels
• Improved CNC Driving Gears
• NMRA RP-25 Profile Wheels
• CNC Black Driving Wheels
