Straight Track with Wood Ties
• Roadbed track with 6.5mm track gauge, Z scale.
• Nickel silver rail is used due to its excellent electrical conductivity.
• Some track parts are stainless steel.
• Special ordered "H" shaped rails are used.
• Almost every section of straight track has a power feed point;
• Your engine will run better if you feed power to several points. 		• Every Power feed point has a cover which maintains the track's appearance
        when you are not using a power feed point.
• The facing surfaces to wheel tire tread and the top of the rail are widened,
        this helps the grip of wheels and traction tires to be stronger.
        It also helps to reduce the electric resistance
• The rail joiners can be easily changed if damaged.
  Brass Track Nails   Click to Shop
#ROK-R001   110mm Straight
  • 110mm Long
  • 4 Pieces per Package
  $15.58 retail ea. • $12.46
Features:
  • 110mm Long
  • Power Feed Slot
  • 4 Pieces per Package
#ROK-R002   R195mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 195mm Radius   ⇔   7-43/64" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R003   R170mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 170mm Radius   ⇔   6-11/16" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R004   R220mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 220mm Radius   ⇔   8-21/32" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R005   R145mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 145mm Radius   ⇔   5-45/64" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R009   220mm Straight
  • 220mm Long
  • 4 Pieces per Package
  $18.75 retail ea. • $15.00
Features:
  • 220mm Long
  • Power Feed Slot
  • 4 Pieces per Package
#ROK-R010   R95mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 95mm Radius   ⇔   3-47/64" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R011   R120mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 120mm Radius   ⇔   4-23/32" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R012   R490mm ⋅ 13º
  • Curved Track
  • 2 Pieces per Package
  $9.42 retail ea. • $7.54
Features:
  • 490mm Radius   ⇔   19-19/64" Radius
  • 13 Degrees Arc
  • Does not make a full circle
#ROK-R013   Track Bumper
  • 42mm Long
  • 2 Pieces per Package
  $12.75 retail ea. • $10.20
Features:
  • 42mm Long
  • Track Bumper
  • 2 Pieces per Package
#ROK-R014   R245mm ⋅ 30º
  • Curved Track
  • 6 Pieces per Package
  $25.58 retail ea. • $20.46
Features:
  • 245mm Radius   ⇔   9-41/64" Radius
  • 30 Degrees Arc
  • Requires 12 sections to make a full circle
#ROK-R015   R270mm ⋅ 30º
  • Curved Track
  • 6 Pieces per Package
  $25.58 retail ea. • $20.46
Features:
  • 270mm Radius   ⇔   10-5/8" Radius
  • 30 Degrees Arc
  • Requires 12 sections to make a full circle
#ROK-R016   Flex Track
  • 330mm Long
  • 1 Piece per Package
  $23.33 retail ea. • $18.66
Features:
  • 330mm Long
  • 1 Piece per Package
  • Without Power Feed Slot
Watch the Video
#ROK-R018   R70mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 70mm Radius   ⇔   2-3/4" Radius
  • 45 Degrees Arc
  • Requires 8 sections to make a full circle
#ROK-R019   R127mm ⋅ 26º
  • Curved Track
  • 2 Pieces per Package
  $11.08 retail ea. • $8.86
Features:
  • 127mm Radius   ⇔   5" Radius
  • 26 Degrees Arc
  • Does not make a full circle
#ROK-R020   13° Crossing
  • 13° Crossing
  • 1 Pieces per Package
  $44.17 retail ea. • $35.34
Features:
  • 112.8mm Long
  • 1 x Crossing Piece per Package
  • 2 x 53.6mm Strait sections used for trimming
Watch the Video

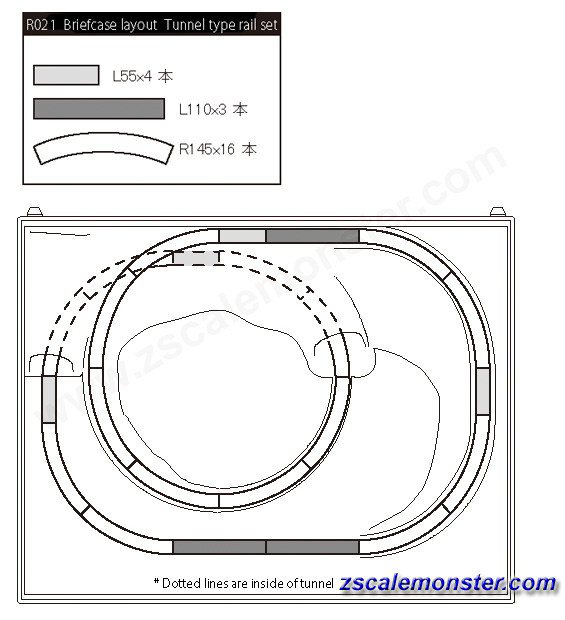

#ROK-R021   Tunnel Type Track Set
  • Discontinued
  $70.92 retail ea.
Features:
  • Twenty-Four Piece Set
  • 3   x Straight Track - L110mm
  • 4   x Straight Track - L55mm
  • 16 x R145mm - 45 degrees
  • 1   x Rerailer
  • Power connection slot in straight sections
#ROK-R022   LH Remote
  • Left Hand Remote
  • L55mm Long
  • 1 Turnout per Package
  $50.83 retail ea. • $40.66
Features:
  • Straight Track 55mm Long
  • Curve Track R127-26 degree
  • 1 x 55mm Trimmed Straight Track
  • 40" Wire w/ Connector (100 cm)
  • 1 Turnout per Package
#ROK-R023   RH Remote
  • Right Hand Remote
  • L55mm Long
  • 1 Turnout per Package
  $50.83 retail ea. • $40.66
Features:
  • Straight Track 55mm Long
  • Curve Track R127-26 degree
  • 1 x 55mm Trimmed Straight Track
  • 40" Wire w/ Connector (100 cm)
  • 1 Turnout per Package
#ROK-R024   55mm Straight
  • 55mm Long
  • 2 Pieces per Package
  $10.42 retail ea. • $8.34
Features:
  • 55mm Long
  • Power Feed Slot
  • 2 Pieces per Package
#ROK-R025   90° Crossing
  • 90° Crossing
  • 1 Crossing per Package
  $17.92 retail ea. • $14.34
Features:
  • 25mm Long
  • 1 x Crossing Piece per Package
Watch the Video
#ROK-R026   LH Remote Curved
  • Left Hand Remote Curved
  • 1 Turnout per Package
  $74.17 retail ea. • $59.34
Features:
  • Curved track R195-30 degree
  • Curved track R220-30 degree
  • 1 x Trimmed Curved Track
  • 40" Wire w/ Connector (100 cm)
  • 1 Turnout per Package
#ROK-R027   RH Remote Curved
  • Right Hand Remote Curved
  • 1 Turnout per Package
  $74.17 retail ea. • $59.34
Features:
  • Curved track R195-30 degree
  • Curved track R220-30 degree
  • 1 x Trimmed Curved Track
  • 40" Wire w/ Connector (100 cm)
  • 1 Turnout per Package
#ROK-R028   Oval Track Set
  • Twelve Piece Set
  $41.25 retail ea. • $33.00
Features:
  • 4 X 110mm Straight Track
  • 8 X R195mm - 45 degree Curved Track
  • Power connection slot in straight sections 		Dimensions
  • 15.4" x 24"
  • 390 x 610mm
#ROK-R029   Track Bumper
  • 42mm Long
  • 2 Pieces per Package
  $12.75 retail ea. • $10.20
Features:
  • 42mm Long
  • Euro Track Bumper
  • 2 Pieces per Package
#ROK-R030   25mm Straight
  • 25mm Long
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 25mm Long
  • 4 Pieces per Package
#ROK-R031   Adjustable Straight
  • Adjusts from 110mm to 120mm
  • 1 Piece per Package
  $23.75 retail ea. • $19.00
Features:
  • Adjusts from 110mm to 120mm
  • 1 Piece per Package
Watch the Video
#ROK-R032   R195mm ⋅ 30º
  • Curved Track
  • 6 Pieces per Package
  $25.42 retail ea. • $20.34
Features:
  • 195mm Radius   ⇔   7-43/64" Radius
  • 30 Degrees Arc
  • Requires 12 sections to make a full circle
#ROK-R033   R220mm ⋅ 30º
  • Curved Track
  • 4 Pieces per Package
  $25.42 retail ea. • $20.34
Features:
  • 220mm Radius   ⇔   8-21/32" Radius
  • 30 Degrees Arc
  • Requires 12 sections to make a full circle
#ROK-R034   LH Double Slip
  • Left Hand Double Slip Remote
  • 1 Turnout per Package
  $110.42 retail ea. • $88.34
Features:
  • 2 x 53.6mm Trimmed Straight Track
  • 40" Wire w/ Connector (100 cm)
  • 1 Double Slip per Package
Double Slip Turnout Options A-B:
Sample
#ROK-R035   RH Double Slip
  • Right Hand Double Slip Remote
  • 1 Turnout per Package
  $110.42 retail ea. • $88.34
Features:
  • 2 x 53.6mm Trimmed Straight Track
  • 40" Wire w/ Connector (100 cm)
  • 1 Double Slip per Package
Double Slip Turnout Options A-B:
Sample
#ROK-R036   112.8mm Straight
  • 112.8mm Long
  • 2 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 112.8mm Long
  • Power Feed Slot
  • 2 Pieces per Package
Watch the Video
#ROK-R037   Magnetic Un-Coupler
  • 55mm Long     • w/ MTL Knuckle Couplers
  • 1 Piece per Package
  $13.08 retail ea. • $10.46
Features:
• For use with Micro Trains Line Magne-Matic Knuckle Couplers
• 55mm Long
• 1 Piece per Package
#ROK-R039   LH Remote
  • Left Hand Remote
  • L110mm Long
  • 1 Turnout per Package
  $49.75 retail ea. • $39.80
Features:
  • Straight Track 110mm Long
  • Curve Track R490-13 degree
  • 1 x 110mm Trimmed Straight Track
  • 40" Wire w/ Connector (100 cm)
  • 1 Turnout per Package
#ROK-R040   RH Remote
  • Right Hand Remote
  • L110mm Long
  • 1 Turnout per Package
  $49.75 retail ea. • $39.80
Features:
  • Straight Track 110mm Long
  • Curve Track R490-13 degree
  • 1 x 110mm Trimmed Straight Track
  • 40" Wire w/ Connector (100 cm)
  • 1 Turnout per Package
#ROK-R045   110mm w/o Roadbed
  • 110mm Long
  • 2 Pieces per Package
  $11.42 retail ea. • $9.14
Features:
  • 110mm Long
  • Without Roadbed
  • 2 Pieces per Package
  • For use with the Iron Bridge
Watch the Video
#ROK-R046   R45mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $17.92 retail ea. • $14.34
Features:
  • 45mm Radius   ⇔   1-49/64" Radius
  • 45 Degrees Arc
  • Requires 8 sections to make a full circle
#ROK-R047   Siding Track Set
  • Six Piece Set
  $91.08 retail ea. • $72.86
Features:
  • 1 X 110mm Left Hand Remote Turnout
  • 1 X 110mm Right Hand Remote Turnout
  • 2 X R490mm Curved Track
  • 2 X 110mm Straight Track
#ROK-R062   Double Track Oval Set
  • Thirty-Three Piece Set
  $177.25 retail ea. • $141.80
Features:
  • 2 X 110mm Right Hand Remote Turnout
  • 2 X 110mm Straight Track for trimming RH
  • 8 X R195mm - 45 degree Curved Track
  • 8 X R220mm - 45 degree Curved Track
  • 8 X 220mm Straight Tracks
  • 4 X 110mm Straight Tracks
  • 1 X Rerailer
Dimensions
  • 18" x 36"
  • 460 x 900mm
#ROK-R063   Grade Separation Set
  • Rail set D
  • Single Track
  • Sixty-One Piece Set
  $370.42 retail ea. • $296.34
Features:
  • 2   x Straight Track - L25mm
  • 1   x Straight Track - L55mm
  • 2   x Straight Track - L110mm
  • 7   x Straight Track/Viaduct - L110mm
  • 8   x Curved Track - R195 30deg
  • 16 x Curved Track/Viaduct - R195 30deg
  • 1   x Red iron Bridge w/ Track 		• 20 x Gradient pier
• 3   x Level pier
• 1   x Rerailer

Dimensions:
  • 22" x 34"
  • 560 x 860mm
#ROK-R064   R195mm ⋅ 30º
  • Super Elevated Curved Track
  • Roadbed has a 5.5º Bank
  • 6 Pieces per Package
  $32.08 retail ea. • $25.66
Features:
  • 195mm Radius   ⇔   7-43/64" Radius
  • 30 Degrees Arc
  • Requires 12 sections for a full circle
Watch the Video
#ROK-R065   R220mm ⋅ 30º
  • Super Elevated Curved Track
  • Roadbed has a 5.5º Bank
  • 6 Pieces per Package
  $32.08 retail ea. • $25.66
Features:
  • 220mm Radius   ⇔   8-21/32" Radius
  • 30 Degrees Arc
  • Requires 12 sections for a full circle
Watch the Video
#ROK-R073   R245mm ⋅ 30º
  • Super Elevated Curved Track
  • Roadbed has a 5.5º Bank
  • 6 Pieces per Package
  $31.67 retail ea. • $25.34
Features:
  • 245mm Radius   ⇔   9-41/64" Radius
  • 30 Degrees Arc
  • Requires 12 sections for a full circle
Watch the Video
#ROK-R074   R270mm ⋅ 30º
  • Super Elevated Curved Track
  • Roadbed has a 5.5º Bank
  • 6 Pieces per Package
  $31.67 retail ea. • $25.34
Features:
  • 260mm Radius   ⇔   10-5/8" Radius
  • 30 Degrees Arc
  • Requires 12 sections for a full circle
Watch the Video
#ROK-R077   Un-Coupler
  • 55mm Long     • EU and Arnold Couplers
  • 1 Piece per Package
  $55.00 retail ea. • $44.00
Features:
• For use with European (EU) and Arnold couplers
• Control Un-Coupler Track with C002 Rokuhan Turnout Switch (sold separately)
• 55mm Long
• 1 Piece per Package
*Note: #ROK-A040 is required for Arnold uncoupling (sold separately)
#ROK-R078   Double Crossover
  • Remote Double Crossover
  • L220mm Long
  • Released February 2016
  $150.83 retail ea. • $120.66
Features:
  • 220mm Long
  • Remote and Manual Operation
  • 40" Wire w/ Connector (100 cm)
  • Power Routing or Non Power Routing
  • 1 Remote Double Crossover per Package
#ROK-R081   Z Shorty Oval Set
  • Ten Piece Set
  $44.75 retail ea. • $35.80
Features:
  • 2 X 55mm Straight Tracks
  • 8 X R45mm - 45 degree Curved Track
  • For use with Z Shorty
Dimensions
  • 4.33" x 6.3"
  • 110 x 160mm

#ROK-R083   440mm Straight
  • 440mm Long
  • 2 Pieces per Package
  $18.75 retail ea. • $15.00
Features:
  • 440mm Long
  • Power Feed Slot
  • 2 Pieces per Package
  • Longest section of track by Rokuhan
  • Works great with Viaduct sections too!
#ROK-R091   R45mm ⋅ 180º
  • w/o Roadbed
  • Curved Track
  • 2 Pieces per Package
  $23.33 retail ea. • $18.66
Features:
  • Without Roadbed
  • 45mm Radius   ⇔   1-49/64" Radius
  • 180 Degrees Arc
  • Requires 2 sections to make a full circle
  • For use with Z Shorty
#ROK-R092   55mm w/o Roadbed
  • 55mm Long
  • 2 Pieces per Package
  $17.25 retail ea. • $13.80
Features:
  • 55mm Long
  • Without Roadbed
  • 2 Pieces per Package
  • For use with Z Shorty
  Brass Track Nails   Click to Shop
Go to:
• Rokuhan Main Menu
• Back to top
• Z Sitemap
• ZSM Home
• Email for help
The pictures above, and throughout this website, are the property of Zscale Monster Trains. Copying any for retail use is theft.
Many were designed by Zscale Monster Trains for use on this site only.
