Congress enacted the Consumer Product Safety Improvement Act of 2008 and we must now note that these ARE NOT TOYS, AND ARE NOT INTENDED FOR USE BY CHILDREN UNDER AGE OF 14. These products are Model Railroad Equipment and Accessories intended for use by adults.
Curved Track with Wood Ties
• Roadbed track with 6.5mm track gauge, Z scale.
• Nickel silver rail is used due to its excellent electrical conductivity.
• Some track parts are stainless steel.
• Special ordered "H" shaped rails are used.
• Almost every section of straight track has a power feed point;
• Your engine will run better if you feed power to several points.
• Every Power feed point has a cover which maintains the track's appearance
        when you are not using a power feed point.
• The facing surfaces to wheel tire tread and the top of the rail are widened,
        this helps the grip of wheels and traction tires to be stronger.
        It also helps to reduce the electric resistance
• The rail joiners can be easily changed if damaged.
  Brass Track Nails   Click to Shop
Track Sets
#ROK-R021   Tunnel Type Track Set
  • Track Set for Layout w/ Tunnel
  • Twenty-Four Piece Set
  $59.95 retail ea. • $47.96
Features:
  • Twenty-Four Piece Set
  • 3   x Straight Track - L110mm
  • 4   x Straight Track - L55mm
  • 16 x R145mm - 45 degrees
  • 1   x Rerailer
  • Power connection slot in straight sections
#ROK-R028   Oval Track Set
  • Twelve Piece Set
  $24.95 retail ea. • $19.96
Features:
  • 4 X 110mm Straight Track
  • 8 X R195mm - 45 degree Curved Track
  • Power connection slot in straight sections
Dimensions
  • 15.4" x 24"
  • 390 x 610mm
#ROK-R047   Siding Track Set
  • Six Piece Set
  $56.20 retail ea. • $44.96
Features:
  • 1 X 110mm Left Hand Remote Turnout
  • 1 X 110mm Right Hand Remote Turnout
  • 2 X R490mm Curved Track
  • 2 X 110mm Straight Track
#ROK-R062   Double Track Oval Set
  • Thirty-Three Piece Set
  $114.95 retail ea. • $91.96
Features:
  • 2 X 110mm Right Hand Remote Turnout
  • 2 X 110mm Straight Track for trimming RH
  • 8 X R195mm - 45 degree Curved Track
  • 8 X R220mm - 45 degree Curved Track
  • 8 X 220mm Straight Tracks
  • 4 X 110mm Straight Tracks
  • 1 X Rerailer
Dimensions
  • 18" x 36"
  • 460 x 900mm
#ROK-R063   Grade Separation Set
  • Rail set D
  • Single Track
  • Sixty-One Piece Set
  $237.96 retail ea. • $190.37
Features:
  • 2   x Straight Track - L25mm
  • 1   x Straight Track - L55mm
  • 2   x Straight Track - L110mm
  • 7   x Straight Track/Viaduct - L110mm
  • 8   x Curved Track - R195 30deg
  • 16 x Curved Track/Viaduct - R195 30deg
  • 1   x Red iron Bridge w/ Track
• 20 x Gradient pier
• 3   x Level pier
• 1   x Rerailer

Dimensions:
  • 22" x 34"
  • 560 x 860mm
Super Elevated Track w/ Wood Ties
#ROK-R064   R195mm ⋅ 30º
  • Super Elevated Curved Track
  • Roadbed has a 5.5º Bank
  • 6 Pieces per Package
  $18.95 retail ea. • $15.16
Features:
  • 195mm Radius   ⇔   7-43/64" Radius
  • 30 Degrees Arc
  • Requires 12 sections for a full circle
Watch the Video
#ROK-R065   R220mm ⋅ 30º
  • Super Elevated Curved Track
  • Roadbed has a 5.5º Bank
  • 6 Pieces per Package
  $18.95 retail ea. • $15.16
Features:
  • 220mm Radius   ⇔   8-21/32" Radius
  • 30 Degrees Arc
  • Requires 12 sections for a full circle
Watch the Video
#ROK-R073   R245mm ⋅ 30º
  • Super Elevated Curved Track
  • Roadbed has a 5.5º Bank
  • 6 Pieces per Package
  $18.95 retail ea. • $15.16
Features:
  • 245mm Radius   ⇔   9-41/64" Radius
  • 30 Degrees Arc
  • Requires 12 sections for a full circle
Watch the Video
#ROK-R074   R270mm ⋅ 30º
  • Super Elevated Curved Track
  • Roadbed has a 5.5º Bank
  • 6 Pieces per Package
  $18.95 retail ea. • $15.16
Features:
  • 260mm Radius   ⇔   10-5/8" Radius
  • 30 Degrees Arc
  • Requires 12 sections for a full circle
Watch the Video
Curved Track w/ Wood Ties
#ROK-R002   R195mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $9.80 retail ea. • $7.84
Features:
  • 195mm Radius   ⇔   7-43/64" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R003   R170mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $9.80 retail ea. • $7.84
Features:
  • 170mm Radius   ⇔   6-11/16" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle

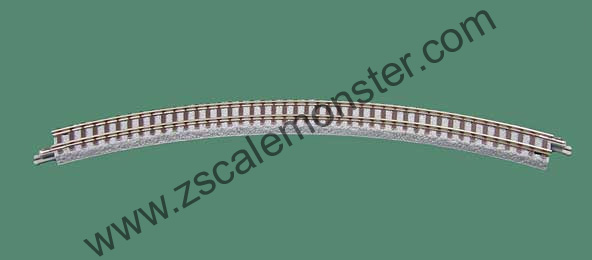

#ROK-R004   R220mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $9.80 retail ea. • $7.84
Features:
  • 220mm Radius   ⇔   8-21/32" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R005   R145mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $9.80 retail ea. • $7.84
Features:
  • 145mm Radius   ⇔   5-45/64" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R010   R95mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $9.80 retail ea. • $7.84
Features:
  • 95mm Radius   ⇔   3-47/64" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R011   R120mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $9.80 retail ea. • $7.84
Features:
  • 120mm Radius   ⇔   4-23/32" Radius
  • 45 Degrees Arc
  • Requires 8 sections for a full circle
#ROK-R012   R490mm ⋅ 13º
  • Curved Track
  • 2 Pieces per Package
  $4.90 retail ea. • $3.92
Features:
  • 490mm Radius   ⇔   19-19/64" Radius
  • 13 Degrees Arc
  • Does not make a full circle
#ROK-R014   R245mm ⋅ 30º
  • Curved Track
  • 6 Pieces per Package
  $14.65 retail ea. • $11.72
Features:
  • 245mm Radius   ⇔   9-41/64" Radius
  • 30 Degrees Arc
  • Requires 12 sections to make a full circle

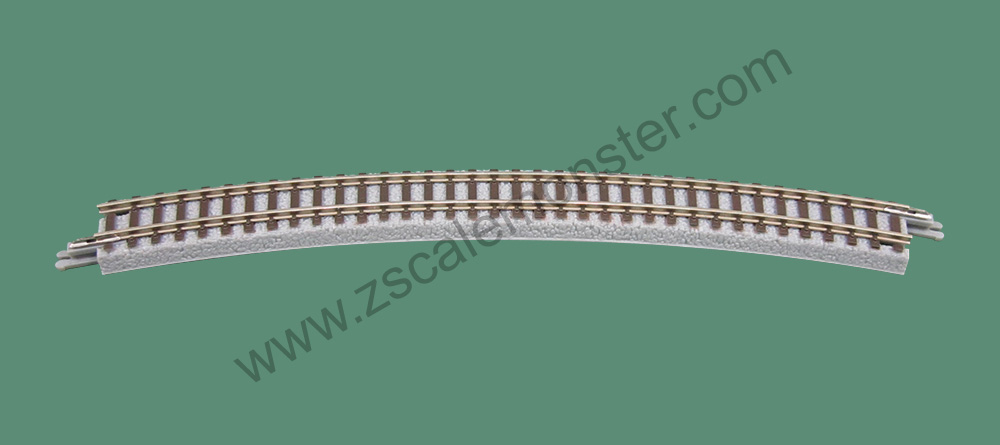

#ROK-R015   R270mm ⋅ 30º
  • Curved Track
  • 6 Pieces per Package
  $14.65 retail ea. • $11.72
Features:
  • 270mm Radius   ⇔   10-5/8" Radius
  • 30 Degrees Arc
  • Requires 12 sections to make a full circle
#ROK-R018   R70mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $9.80 retail ea. • $7.84
Features:
  • 70mm Radius   ⇔   2-3/4" Radius
  • 45 Degrees Arc
  • Requires 8 sections to make a full circle
#ROK-R019   R127mm ⋅ 26º
  • Curved Track
  • 2 Pieces per Package
  $4.90 retail ea. • $3.92
Features:
  • 127mm Radius   ⇔   5" Radius
  • 26 Degrees Arc
  • Does not make a full circle
#ROK-R032   R195mm ⋅ 30º
  • Curved Track
  • 6 Pieces per Package
  $14.65 retail ea. • $11.72
Features:
  • 195mm Radius   ⇔   7-43/64" Radius
  • 30 Degrees Arc
  • Requires 12 sections to make a full circle
#ROK-R033   R220mm ⋅ 30º
  • Curved Track
  • 4 Pieces per Package
  $14.65 retail ea. • $11.72
Features:
  • 220mm Radius   ⇔   8-21/32" Radius
  • 30 Degrees Arc
  • Requires 12 sections to make a full circle
#ROK-R046   R45mm ⋅ 45º
  • Curved Track
  • 4 Pieces per Package
  $9.80 retail ea. • $7.84
Features:
  • 45mm Radius   ⇔   1-49/64" Radius
  • 45 Degrees Arc
  • Requires 8 sections to make a full circle
  Brass Track Nails   Click to Shop
