Richmond Controls
About Richmond Controls:
        • LED Lighting
        • LED Lighting Effects
        • Electrical Contact Kits
• Individual SMT LEDs
• LED Lighting Kits
• Axel Wipers
• Bond LEDs in place using only Clear, Flexible & Fast Drying #ZAP-560
      • To purchase the #ZAP-560 Canopy Glue Click here
• Appropriate current limiting resistors required for LEDs
LED Headlight and Mars Light Kit
#RCC-EZ00-002   Headlight / Mars Light
• LED Headlight and Mars Light Kit
• Fits Micro-Trains Line F7A
      $36.00 retail ea. • $32.40
Details:
• Steady Headlight and Oscillating signal lights simulating Mars Lights
• Mars Lights are accurate simulations with gradual rise and fall times
• This kit is not made of simple alternating dual filament bulbs!
Features:
• Mars Light
• Steady Headlight 		• Mars light fits upper headlight opening
• Steady light fits lower headlight opening
• Golden White LEDs
• Rated for 16 volts DC
• Detailed assembly instructions
• LEDs fit into factory headlight holes of F7A Shell
• Module mounts in location of factory MTL capacitor
• Fits Series #980 01 000 MTL F7A Locomotives
• Bond in place using only Clear, Flexible & Fast Drying #ZAP-560
      • To purchase the #ZAP-560 Canopy Glue Click here

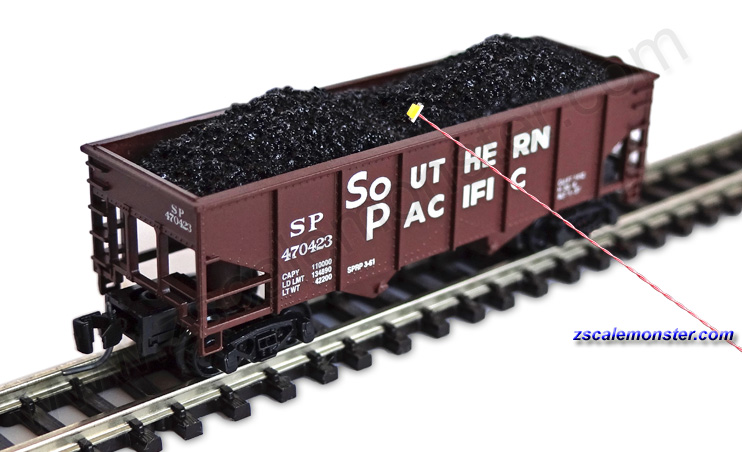

SMT 0603 LEDs
Features:
    • Equipped with 6 inch #36 wire leads
    • Two wire lead exit configurations:
              • Rear Wire
              • Side Wire 		Head Light Configuration
Ditch Light Configuration

• Operating voltage: 3 Volts DC
• Max 20mA (3mA suggested)
• Appropriate resistors required
        (resistors not included)
• Bond in place using only Clear, Flexible & Fast Drying #ZAP-560
      • To purchase the #ZAP-560 Canopy Glue Click here
• Wire coating can be removed simply by touching with hot solder
• 1.5mm x 0.75mm x 0.60mm
Golden White LED Lighting
#RCC-603   Golden White   SMT LED
• 1.5mm x 0.75mm x 0.60mm
• 6" Wire Leads
• Head Light Configuration
• Ditch Light Configuration
• Sold in Pairs or as a 10-Pack
  • 2-Pack    • $6.00 retail ea.   • $5.40
  • 10-Pack  • $30.00 retail ea. • $24.00
Rear Wire

603-0101-02
 2-Pack
Rear Wire

603-0101-10
 10-Pack
Side Wire

603-0102-02
 2-Pack
Side Wire

603-0102-10
 10-Pack
Details:
• Bond in place using only Clear, Flexible & Fast Drying #ZAP-560
      • To purchase the #ZAP-560 Canopy Glue Click here
• Operating voltage: 3 Volts   @ 3mA
• Two 6" wire lead exit configurations:
      • Rear Wire
      • Side Wire 		Head Light Configuration
Ditch Light Configuration
• Appropriate current limiting resistors required
• Wire coating can be removed simply by touching with hot solder
Sunny White LED Lighting
#RCC-603   Sunny White   SMT LED
• 1.5mm x 0.75mm x 0.60mm
• 6" Wire Leads
• Head Light Configuration
• Ditch Light Configuration
• Sold in Pairs or as a 10-Pack
  • 2-Pack    • $6.00 retail ea.   • $5.40
  • 10-Pack  • $30.00 retail ea. • $24.00
Rear Wire

603-0201-02
 2-Pack
Rear Wire

603-0201-10
 10-Pack
Side Wire

603-0202-02
 2-Pack
Side Wire

603-0202-10
 10-Pack
Details:
• Bond in place using only Clear, Flexible & Fast Drying #ZAP-560
      • To purchase the #ZAP-560 Canopy Glue Click here
• Operating voltage: 3 Volts   @ 3mA
• Two 6" wire lead exit configurations:
      • Rear Wire
      • Side Wire 		Head Light Configuration
Ditch Light Configuration
• Appropriate current limiting resistors required
• Wire coating can be removed simply by touching with hot solder
Red LED Lighting
#RCC-603   Red   SMT LED
• 1.5mm x 0.75mm x 0.60mm
• 6" Wire Leads
• Head Light Configuration
• Ditch Light Configuration
• Sold in Pairs or as a 10-Pack
  • 2-Pack    • $6.00 retail ea.   • $5.40
  • 10-Pack  • $30.00 retail ea. • $24.00
Rear Wire

603-0301-02
 2-Pack
Rear Wire

603-0301-10
 10-Pack
Side Wire

603-0302-02
 2-Pack
Side Wire

603-0302-10
 10-Pack
Details:
• Bond in place using only Clear, Flexible & Fast Drying #ZAP-560
      • To purchase the #ZAP-560 Canopy Glue Click here
• Operating voltage: 3 Volts   @ 3mA
• Two 6" wire lead exit configurations:
      • Rear Wire
      • Side Wire 		Head Light Configuration
Ditch Light Configuration
• Appropriate current limiting resistors required
• Wire coating can be removed simply by touching with hot solder
Resistor Information
• Finding the required resistor:
      We need to use OHMs Law
          V = I x R
  For our application we need to rearrange:
          R = V ÷ I
          R = Resistor
• Example: using a 3V LED at 3mA with 14V source
      R = Voltage Across Resistor ÷ Current
      R = (14 Volts - 3 Volts) ÷ 3mA
      R = 11 Volts ÷ 0.003A
      R = 3.6K OHM Resistor
• You may adjust the brightness by changing the current value
