Mitey Lites by Circuitron
CIRCUITRON is very pleased to present the extensive MITEY LITES™ line of incandescent lamps and Light Emitting Diodes. These items are custom manufactured to our stringent specifications and provide high quality, consistency, and great value. With the widest range of physical sizes, voltage and brightness ratings in the industry, the MITEY LITES™ line will easily fill ALL of your model lighting needs. All our incandescent lamps are designed to provide over 500 hours of operation at their specific rated voltage. To calculate Resistors & Voltage, see and use the formula at the bottom of this page!
3mm   Super Bright   LEDs

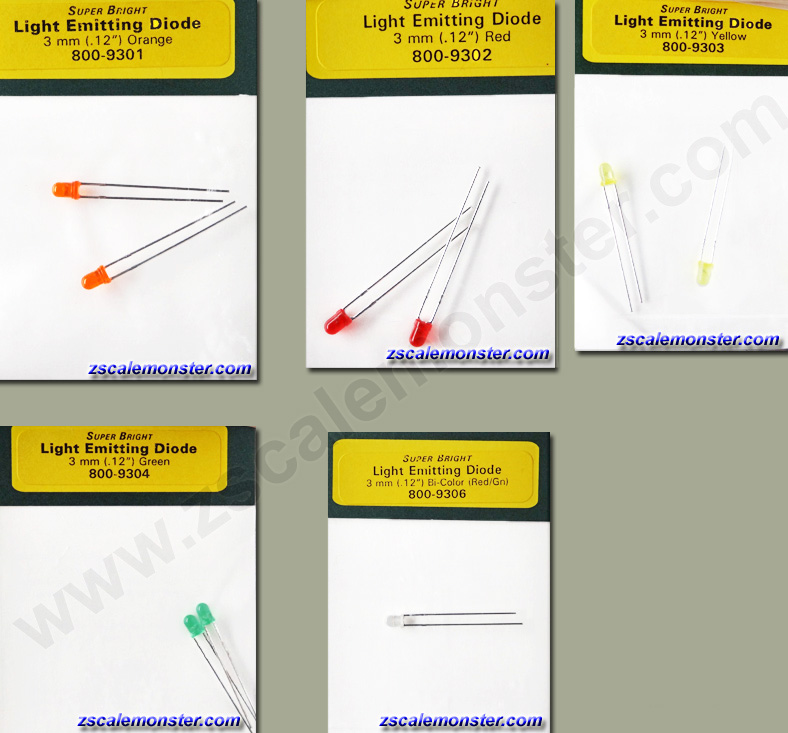

#MLC-9300   3mm Super Bright LEDs
  • 2 each unless marked below
  • All LEDs MUST have a suitable value current limiting resistor
      wired in series with one of the power leads.
  • DC power source must be used, never AC!
          $2.95 retail   • $2.36 		• These LEDs offer up to 25 times the light output of general
    purpose LEDs with typical millicandella ratings of 36-100.
• MITEY LITES™ Light Emitting Diodes are among the brightest
    diffused lens LEDs currently available.
• Offered in a wide variety of colors and sizes
• Ideal as replacement units for Strobe Flashers, Signals, etc.
#MCL-9301

3mm Orange
#MCL-9302

3mm Red
#MCL-9303

3mm Yellow
#MCL-9304

3mm Green
#MCL-9306

Bi-Color (1 ea)
5mm   Super Bright   LEDs

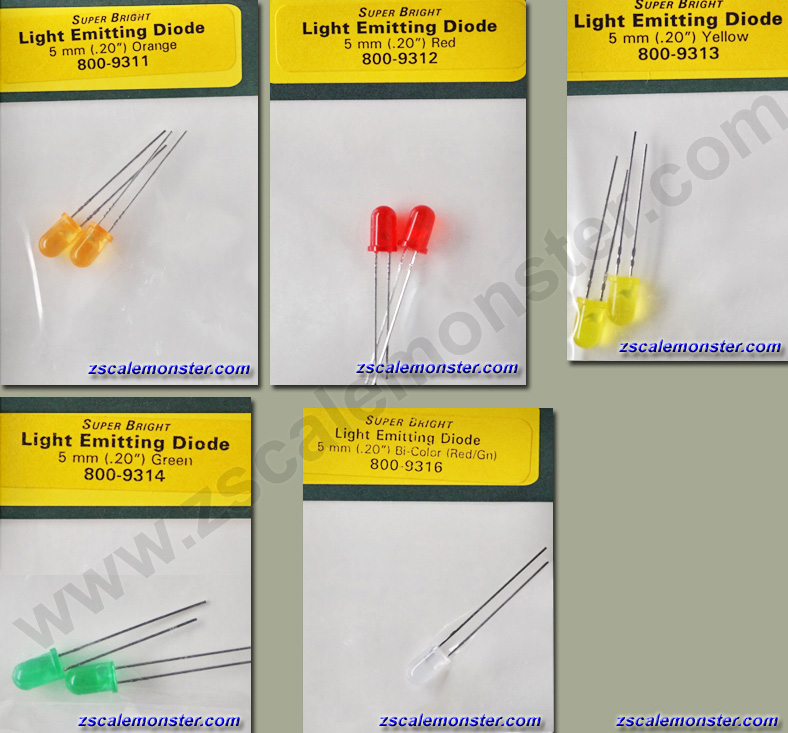

#MLC-9310   5mm Super Bright LEDs
  • 2 each unless marked below
  • All LEDs MUST have a suitable value current limiting resistor
      wired in series with one of the power leads.
  • DC power source must be used, never AC!
          $2.95 retail   • $2.36 		• These LEDs offer up to 25 times the light output of general
    purpose LEDs with typical millicandella ratings of 36-100.
• MITEY LITES™ Light Emitting Diodes are among the brightest
    diffused lens LEDs currently available.
• Offered in a wide variety of colors and sizes
• Ideal as replacement units for Strobe Flashers, Signals, etc.
#MCL-9311

5mm Orange
#MCL-9312

5mm Red
#MCL-9313

5mm Yellow
#MCL-9314

5mm Green
#MCL-9316

Bi-Color (1 ea)
2mm   Super Bright   LEDs
#MLC-9320   2mm Super Bright LEDs
  • 2 each unless marked below
  • All LEDs MUST have a suitable value current limiting resistor
      wired in series with one of the power leads.
  • DC power source must be used, never AC!
          $2.95 retail   • $2.36 		• These LEDs offer up to 25 times the light output of general
    purpose LEDs with typical millicandella ratings of 36-100.
• MITEY LITES™ Light Emitting Diodes are among the brightest
    diffused lens LEDs currently available.
• Offered in a wide variety of colors and sizes
• Ideal as replacement units for Strobe Flashers, Signals, etc.
#MCL-9321

2mm Orange
#MCL-9322

2mm Red
#MCL-9323

2mm Yellow
#MCL-9324

2mm Green
3mm   HYPER-BRITE™   LEDs
#MLC-7500   3mm HYPER-BRITE™ LEDs
  • 6 each unless marked below
  • All LEDs MUST have a suitable value current limiting resistor
      wired in series with one of the power leads.
  • DC power source must be used, never AC!
  $12.95 retail   • $10.36       $6.95 retail   • $5.56 		• These extreme intensity LEDs have outputs of 400 millicandellas
    or greater!
• They are all diffused lens design wide angle viewing except
    the White which has only slight diffusion.
• All packages include resistors for 12-16 volt operation.
#MCL-7501-06

White
$10.36
#MCL-7502-06

Red
$5.56
#MCL-7503-06

Orange
$5.56
#MCL-7504-06

Pure Green
$10.36
#MCL-7505-06

Blue
$10.36
#MCL-7507-06

Yellow/Amber
$5.56
Popular uses of
HYPER-BRITE™ LEDs
 		• White: Special resin provides incandescent look
• Red: Great for Strobes, signals, traffic lights
• Orange: Brilliant color for strobes 		• Pure Green: Intense deep blue-green
• Blue: Great for Emergency Vehicles
• Yellow/Amber: Deep yellow for signals
SUB-MICRO LAMPS   1.5 Volt   (Incandescent)
#MLC-7400   Sub-Micro 0.75mm Diameter
  • All incandescent Lamps MUST have a suitable value current
  limiting resistor (wired in series with one of the power leads)
  when unsing a bulb rated below 12 or 16 volts on a power
  source over 1.5 volts! 		• Incandescent lamp
• Sub-Micro, 0.75mm Diameter, Axial Lead
• 1.5 volt, 18 ma
• 1" bare wire leads
• Use for marker lights, number boards, step lights, etc.
Sub-Micro Lamps
(Pack of 6)
#MCL-7400-06

  $11.95 retail • $9.56
Sub-Micro Lamps
(Pack of 12)
#MCL-7400-12

  $18.95 retail • $15.16
Resistors for 12v supply
(Pack of 10)
#MCL-9400-12

  $2.95 retail • $2.36
Resistors for 16v supply
(Pack of 10)
#MCL-9400-16

    $2.95 retail • $2.36
MICRO LAMPS   1.5 Volt   (STANDARD Output Incandescent)
#MLC-7411   Micro 1.40mm Standard Output
  • All incandescent Lamps MUST have a suitable value current
  limiting resistor (wired in series with one of the power leads)
  when unsing a bulb rated below 12 or 16 volts on a power
  source over 1.5 volts! 		• STANDARD Output Incandescent lamp
• 1.40mm Diameter, Lens End
• 1.5 volt, 13 ma
• 8" black stranded wire leads
• Use for marker lights, number boards, step lights, etc.
1.40mm Micro Lamps
(Pack of 12)
#MCL-7411-12

  $16.95 retail • $13.56
1.40mm Micro Lamps
(Pack of 25)
#MCL-7411-25

  $28.95 retail • $23.16
Resistors for 12v supply
(Pack of 10)
#MCL-9411-12

  $2.95 retail • $2.36
Resistors for 16v supply
(Pack of 10)
#MCL-9411-16

    $2.95 retail • $2.36
MICRO LAMPS   1.5 Volt   (MEDIUM Output Incandescent)
#MLC-7414   Micro 1.40mm Medium Output
  • All incandescent Lamps MUST have a suitable value current
  limiting resistor (wired in series with one of the power leads)
  when unsing a bulb rated below 12 or 16 volts on a power
  source over 1.5 volts! 		• MEDIUM Output Incandescent lamp
• 1.40mm Diameter, Lens End
• 1.5 volt, 30 ma Bright!
• 8" black stranded wire leads
• Use for marker lights, number boards, step lights, etc.
1.40mm Micro Lamps
(Pack of 6)
#MCL-7414-06

  $13.95 retail • $11.16
1.40mm Micro Lamps
(Pack of 12)
#MCL-7414-12

  $18.95 retail • $15.16
Resistors for 12v supply
(Pack of 10)
#MCL-9414-12

  $2.95 retail • $2.36
Resistors for 16v supply
(Pack of 10)
#MCL-9414-16

    $2.95 retail • $2.36
MICRO LAMPS   12 Volt   (EXTRA HIGH Output Incandescent)
#MLC-7431   Micro 2.40mm EXTRA HIGH Output
  • Not for use over 12 volts without a current limiting resistor!
  If over 12 volts it MUST have a suitable value current limiting
  resistor (wired in series with one of the power leads). 		• EXTRA HIGH Output Incandescent lamp
• 2.40mm Diameter, Lens End
• 12 volt, 50 ma Extremely Bright!
• 8" black stranded wire leads
• Use for Headlights, Mars/Ditch Lights, etc.
2.40mm Micro Lamps
(Pack of 2)
#MCL-7431-02

  $6.95 retail • $6.26
2.40mm Micro Lamps
(Pack of 6)
#MCL-7431-06

  $13.95 retail • $11.16
MICRO LAMPS   14-16 Volt   (General Purpose Incandescent)
#MLC-7440   Micro 3.00mm General Purpose
  • Not for use over 16 volts without a current limiting resistor!
  If over 16 volts it MUST have a suitable value current limiting
  resistor (wired in series with one of the power leads). 		• General Purpose Incandescent lamp
• 3.00mm Diameter, Lens End
• 14-16 volt, 30 ma Extremely Bright!
• 12" black stranded wire leads
• Use for equipment and structure lighting etc.
3.00mm Micro Lamps
(Pack of 12)
#MCL-7440-12

  $8.95 retail • $7.16
3.00mm Micro Lamps
(Pack of 25)
#MCL-7440-25

  $14.95 retail • $11.96
MICRO LAMPS   14-16 Volt   (HIGH OUTPUT Incandescent)
#MLC-7441   Micro 3.00mm HIGH OUTPUT
  • How bright? The #7441 is 2.5 times brighter than the 7440!
  • Not for use over 16 volts without a current limiting resistor!
  If over 16 volts it MUST have a suitable value current limiting
  resistor (wired in series with one of the power leads). 		• HIGH OUTPUT Incandescent lamp
• 3.00mm Diameter, Lens End
• 14-16 volt, 60 ma Extremely Bright!
• 12" Brown stranded wire leads
• Use for equipment and structure lighting etc.
3.00mm Micro Lamps
(Pack of 6)
#MCL-7441-6

  $6.95 retail • $6.26
3.00mm Micro Lamps
(Pack of 12)
#MCL-7441-12

  $9.95 retail • $7.96
3.00mm Micro Lamps
(Pack of 25)
#MCL-7441-25

  $16.95 retail • $13.56
MICRO LAMPS   (Resistor)

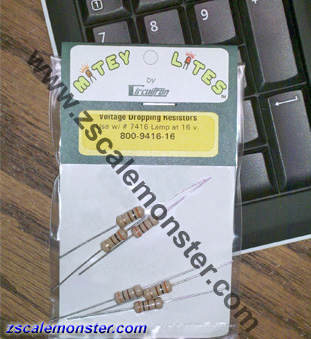

#MLC-9416-16   HIGH OUTPUT Resistors
  • Resistor for 16 volts power supply
Resistors
(Pack of 6)
#MCL-9416-16

  $2.95 retail • $2.36
"Resistors" What you should know:
LEDs must have a suitable value current limiting resistor wired in series with one lead.
The value of the resistor will depend on the voltage of the power supply.
Use this formula:
(VOLTS - 2)÷0.015=RESISTANCE in ohms
Choose the closest standard value ˝ watt resistor. Available from Radio Shack.
Sub-Miniature Lamps and Light Emitting Diodes (LEDs) are fragile and must be handled with care to prevent damage and to avoid premature failure. Incandescent lamps must be operated at their rated voltage or less. Even a 10% high voltage applied to a lamp will reduce it’s life by 2/3. A 30% over voltage applied to a lamp will result in a life of only 4% of the normal. Thus, running one of our 1.5 volt lamps (which normally have a 500 hour life expectancy) at 2 volts will result in a life of about only 20 hours! If you must power a lamp from a supply rated at a higher voltage than the lamp’s, use a suitable rated voltage dropping resistor for each lamp. CIRCUITRON has selected resistors available for most lamp models.

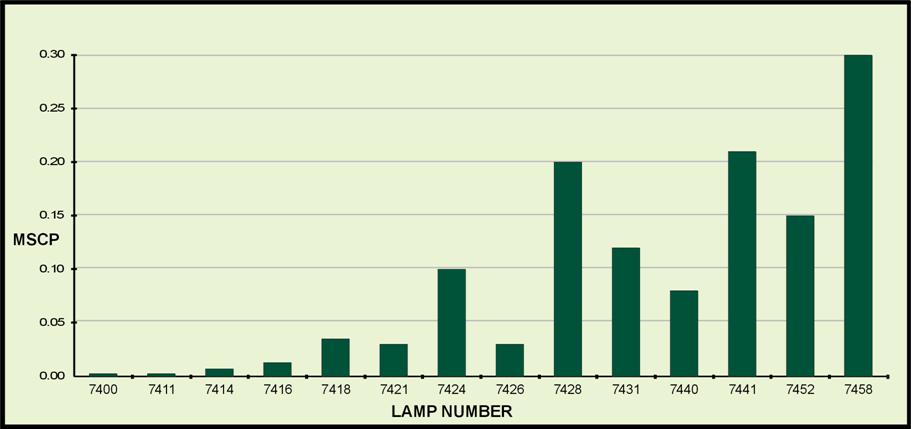

RELATIVE INTENSITY OF MITEY LITES
